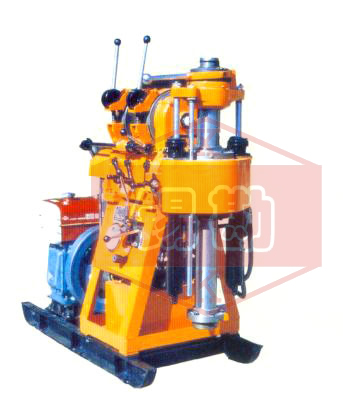

XY—1A岩芯钻机 The A XY- 1 rock drills the machine
XY—1A型岩芯钻机是一种具有油压给进的高速轻便钻机。
The XY—a type rock 芯drills the machine is a kind of having hydraulic-pneumatic giving into .Of the high speed is easy and convenient to drill the machine.
钻机适应范围：
本钻机适用于固体矿床的普查勘探及工程地质勘察等钻孔以及各种混凝土结构检查孔。
根据地质地不同，可选用金钢石，合金及钢粒等钻头进行钻进。
当终孔分别为75mm和46mm时，额定钻孔深度分别为100m和180m。深不得超过各钻进深度的110%，大开孔直径允许为150mm
This drill the census that machine be applicable to solid mineral bed explores and work .The distance geology investigates etc,drills a hole and every kind of concrete construction Check bore.
According to the geology of different,the eligibility used the gold steel石,metal alloy And steel an etc.auger proceeds to drill into.
When eventually the bore distinguishes to 75 mms with the 46mms,the sum settles to drill.Each 110% that drill into the depth,biggest open the bore diameter admission.For the 150 mms.
钻机特点：
具有油压给进机构，提高钻进效率，减轻工人劳动强度。
钻机配有上球卡式夹持机构并带有六方主动钻杆，可实行不停机倒杆，工作效率高，安全可靠。
配有孔底压力表指示压力，便于掌握孔内情况。
手柄集中，操作方便。
钻机结构紧凑，体积小，重量轻，便于解体及搬运，适用于平原和山区工作。
Drill machine characteristics:
Have the hydraulic-pneumatic giving into the organization,increase to drill into the efficiency,alleviate the worker the labor the atrength.
Drilling the machine have the ball cassette clips to hold the prganizati on and take six squares are active to drill the pole,can practice to do not shut down to pour the pole,The work effciency is high,the safety is depend able.
Having the bore bottom manometer instruntions pressure,easy to control the circumstance inside the bore.
The hand handle concentrates,operation is convenient.
Drill the machine construction tightly packed,the physical volume is small,the weight is linght,easy to disintegration and porterage,be applicable to the plain to work with the mountain area.
技术参数 Technique parameter
钻机 Drill the machine
钻进深度 100，180m
大开孔直径 150mm
终孔直径 75，46mm
钻杆直径 42，43mm
钻机外廓尺寸（l×b×h) 1433mm×697mm×1274mm
钻机重量（不包括动力机） 420kg
Drill into depth 100,180m
It is biggest to open bore diameter 150mm
Eventually bore diamter 75,46mm
Drill a hole the 90degrees:The Cape of-75degree
Drill the size of outside the machine（l×b×h) 1433mm×697mm×1274mm
Drill machine weight(do not include the motive machine) 420kg
油泵 Oil Pump
型号 YBC-12/80
额定压力 8Mpa
流量 8ml/r
额定转速 1500r/min
Model number ybc-12/80
The sum settles pressure 8Mpa
Discharge 8ml/r
The sum settles to turn soon 1500r/min
卷扬机 Hoist
大起重量（单绳） 11KN
卷筒转速 121，76，36r/min
卷筒圆周线速度（二层） 1.05，0.66，0.31m/s
卷筒直径 140mm
钢丝绳直径 9.3mm
钢丝绳容量 35m
抱闸直径 252mm
闸宽宽度 50mm
It is biggest to rises weight(single rope)11KN
A turns soon 121,76,36r/min
A circumference line speed(two layer) 1.05,0.66,0.31m/s
A diameter 140mm
Steel wire rope diameter 9.3mm
Steel wire rope capacity 35m
Embrace diameter 252mm
The takes width 50mm
回转器 Turn round the machine
立轴转速（五档） 1010，790，470，295，140r/min
立轴行程 450mm
立轴空载向上大移动速度 3m/min
立轴空载向下大移动速度 4m/min
立轴大给进力 15KN
立轴大起重力 25KN
The stalk of furns soon(five fine) 1010，790，470，295，140r/min
stalk route of fravel: 450mm
The stalk of gets empty to carry to heading up the biggest ambulation flat-out 3m/min
The stalk of gets empty to carry to get down the biggest ambulation flat-out 4m/min
The stalk of is biggest to give into pressure 15KN
The stalk of is biggest to rise gravity 25KN
电动机 Electric motor
型号 Y160M-4
额定功率 11KN
额定转速 1460r/min
Model number Y160M-4
The sum settles power 11KN
The sum settles to turn soon 1460r/min
柴油机 Diesdl engine
型号 ES1100
额定功率 12.1W
额定转速 2200r/min
Model number ES1100
The sum settles power 12.1W
The sum settles to turn soon 2200r/min
|
